Products

Complete Panel Range

From 11kV/33kV HT panels to LT distribution boards — engineered to IS, IEC and client specs with 100% pre-dispatch testing.

PCCMCCDG SyncVFDAPFCHT 11kV/33kVLT PanelsMain LTMeter BoardCustom
Power Control
PCC Panel

Power Control Centre

PCC panels are the main distribution hub for incoming electrical supply in large industrial facilities — multiple outgoing feeders, high current ratings, SCADA integration.

  • Current rating up to 6300A with ACB / MCCB incomer
  • Copper / Aluminium busbars with short circuit withstand to 100kA
  • IP42 to IP65 enclosure options (indoor/outdoor)
  • Built-in metering: V, A, kW, kWh, PF, Frequency, Harmonics etc.
  • Motorized ACB with remote SCADA operation
  • IEC 61439 type-tested
Request Quote Email Specs

📋 Complies with IS 8623 / IEC 61439-1&2

MCC Panel

Motor Control Centre

Motor Control Centres in fixed and draw-out configurations with DOL, Star-Delta, Soft Starter, and VFD starter types for all industrial automation requirements.

  • DOL, Star-Delta, Soft Starter, VFD motor starters
  • Individual feeder protection per motor circuit
  • Interlocking logic with PLC / SCADA interface
  • Class 2E protection for critical motors
  • Remote & local operation with key selector
  • Fault indication, alarm annunciator, trip history
Request Quote Email Specs

📋 IEC 61439-2 compliant · IP42 to IP55

Motor Control
DG Synchronization
DG Sync Panel

DG Synchronization Panel

Automatic parallel operation of multiple generators with load sharing, AMF control, and mains-DG changeover for hospitals, data centres, and critical facilities.

  • Automatic Mains Failure (AMF) control logic
  • Load sharing between 2 to 8 DG sets
  • DEIF / Woodward / ComAp / Deepsea Sync. Controller
  • Automatic & manual synchronisation modes
  • Bus coupler with interlocking for paralleling
  • Overcurrent, reverse power, under/over-frequency protection
Request Quote Email Specs

📋 Compatible with all major DG OEMs · Remote SCADA monitoring

VFD Panel

Variable Frequency Drive Panel

Energy-efficient motor speed control using ABB, Siemens, Danfoss, L&T, Fuji VFDs for pumps, fans, compressors, and conveyors with up to 50% energy savings.

  • 0.37kW to 450kW VFD Capacity
  • ABB, Siemens, Danfoss, L&T, Fuji VFDs available
  • Auto/manual bypass arrangements
  • SCADA via Modbus / Profibus
  • Harmonic filters & input line reactors
  • Energy saving 30–50% on variable loads
Request Quote Email Specs

📋 VFD brands: ABB, Siemens, Danfoss, L&T, Fuji · Bypass optional

Variable Frequency
Auto Power Factor
APFC Panel

Auto Power Factor Correction

Microprocessor-based APFC panels maintaining unity PF, eliminating DISCOM penalty charges and improving overall power quality across your facility.

  • Microprocessor PF Controller (EPCOS / Neptune / L&T)
  • Capacitor bank up to 1500 kVAR
  • Detuned reactors for harmonic protection
  • Auto step switching with thyristor option
  • PF maintained at 0.99 unity automatically
  • Eliminates DISCOM PF penalty charges
Request Quote Email Specs

📋 Capacitor: Epcos / Neptune · Controller: L&T / Circutor

HT Panel

11kV / 33kV High Tension Switchgear

VCB-based indoor HT switchgear for 11kV and 33kV substations, industrial plants, and infrastructure projects — fully compliant with IEC 62271 and IS 12729.

  • 11kV & 33kV VCB / SF6 circuit breakers
  • Numerical microprocessor protection relays
  • Bus PT, CT metering cubicles
  • Interlocking schemes for operational safety
  • Cable sealing end termination provisions
  • IEC 62271 / IS 12729 compliant
Request Quote Email Specs

📋 VCBs: ABB, Siemens, Schneider · Protection: SEL, L&T

11kV / 33kV High Tension
Low Tension Distribution
LT Panel

Low Tension Distribution Boards

MCCB/MCB-based modular LT distribution panels and sub-distribution boards for 415V industrial and commercial facilities — easy expansion, metering provisions.

  • MCCB / MCB incomer and outgoing feeders
  • Bus trunking connection provisions
  • IP42 to IP55 enclosure options
  • Powder-coated CRCA steel, RAL 7032 / RAL 7035
  • Energy monitoring provisions
  • Indoor and outdoor installations
Request Quote Email Specs

📋 IS 8623 / IEC 61439 compliant · MCCB: ABB, Schneider, L&T

Main LT Panel
Main LT Panel

Main LT Incomer Panel

Main LT panels serve as the primary incoming distribution point at 415V, receiving power from the transformer and distributing to MCCs, sub-DBs, and outgoing feeders.

  • Incomer: ACB / MCCB up to 4000A
  • Busbar rated to IS 1897, copper or aluminium
  • Outgoing feeders: MCCB / MPCB / MCB
  • Digital metering: V, A, kW, kWh, PF
  • Enclosure: CRCA steel, RAL 7032 / RAL 7035
  • Type form 4 separation available

More Specialised Solutions

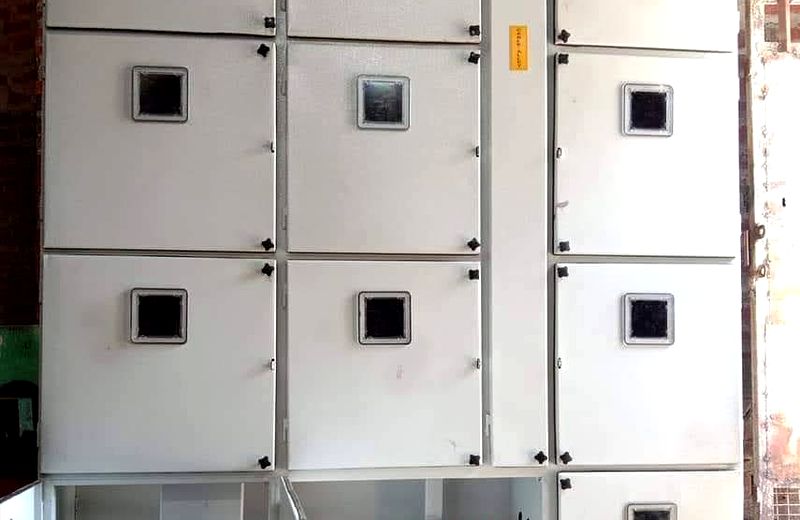

Meter Board

Meter Boards

Multi-tenant energy metering boards for housing complexes, commercial buildings, and industrial parks — DISCOM compliant.

  • Single / Three phase metering
  • DIN rail based MCB distribution
  • Anti-tamper design available
  • DISCOM approved configurations
Enquire Now
Custom Panel

Custom & Feeder Pillars

Outdoor feeder pillars, street lighting panels, bus ducts, tap-off boxes, and rising mains — bespoke to your specifications.

  • Air insulated bus ducts & rising mains
  • Outdoor feeder pillars (IP65)
  • Street lighting control panels
  • Tap-off & adopter boxes
Enquire Now
🤖

PLC / AMF / Automation

PLC-based control panels, AMF panels, and process automation systems for industrial facilities of all sizes.

  • Siemens, Allen Bradley, Schneider PLCs
  • AMF panels for all DG capacities
  • HMI touch-screen integration
  • Remote I/O and fieldbus systems
Enquire Now
Technical Reference

Common Panel Specifications

ParameterSpecificationStandard
Enclosure MaterialCRCA Steel (14–16 SWG), SS 304/316 optionalIS 2062
Surface Finish11-tank pre-treatment + epoxy powder coating, RAL 7032 / RAL 7035IS 641
Ingress ProtectionIP42, IP54, IP55, IP65 (indoor/outdoor options)IEC 60529
Operating Temp−10°C to +50°C ambient; humidity up to 95% RHIEC 61439
Busbar MaterialElectrolytic grade copper (E91E) / aluminium alloyIS 1897
Short Circuit RatingUp to 100kA for 1 second (type tested)IEC 61439-1/2
WiringFR-PVC / XLPE insulated copper conductors, colour codedIS 694
Main ComponentsABB, Siemens, Schneider, L&T, Havells — OEM certifiedOEM Certified

Need a Custom Panel Solution?

Share your SLD or load list — we'll engineer the perfect panel within your timeline.
